Təsvir

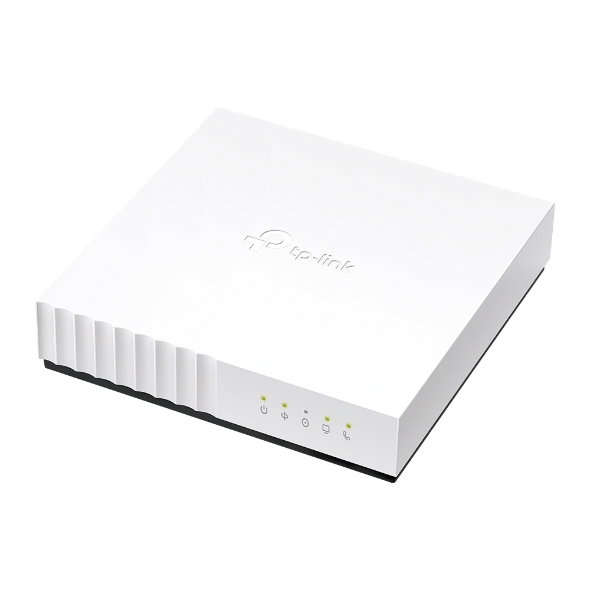

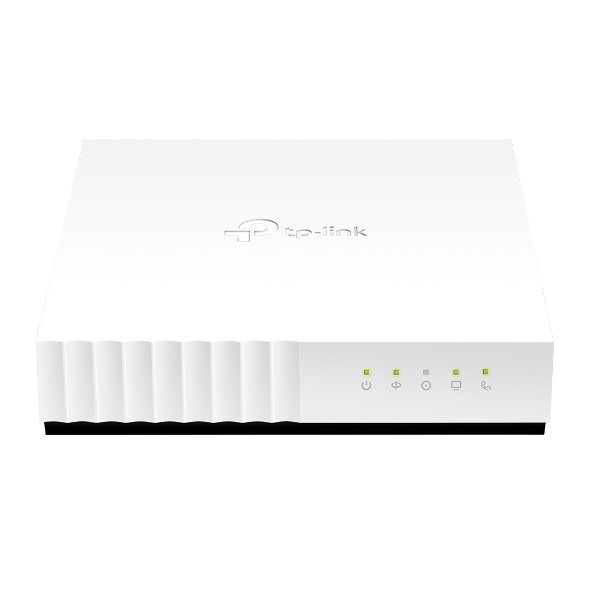

1-Port Gigabit XPON Terminal with VoIP
XZ000-G6v
- Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds.*
- XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
- VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
- Ease of Use: Quick and hassle-free installation with intelligent power-saving.
- Remote Management: Supports the OMCI (ONU Management Control Interface) and TR-069 protocols for centralized configuration and management.
Əlavə məlumat
| Brend | Tp-Link |
|---|---|
| Model | XZ000-G6v |
| APARAT XÜSUSİYYƏTLƏRİ | |
|---|---|
| Dalğa Uzunluğu | Upstream: 1310 nm Downstream: 1490 nm |
| External Power Supply | 9VDC/0.6A |

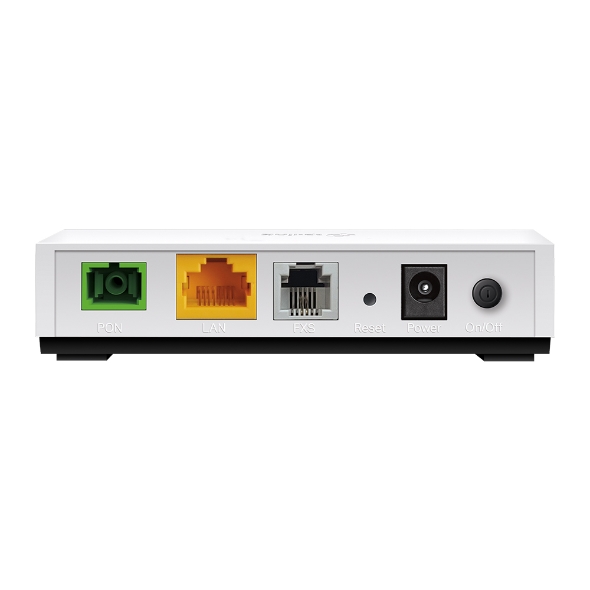

| İnterfeys | 1× PON Port 1× 10/100/1000 Mbps RJ45 Port 1× Phone Port |
| Düymə | Sıfırlama düyməsi Power On/Off Button |
| Ölçülər (G x D x Y) | 4.1 × 4.1 × 1.0 in (105 × 105.2 × 24.3 mm) |
| IEEE Standards | IEEE 802.3, 802.3u, 802.1p, 802.1Q |
| Data Rates | Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)* Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)* |
| Optical Module | Class B+ |
| Transmitter | DFB Laser |
| Receiver | Super-TIA |
| Distance | 0–20 Km Max |
| GPON Standards | ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4 |
| PROQRAM XÜSUSİYYƏTLƏRİ | |
|---|---|
| Management Features | Local management: WebGUI, Telnet Remote management: OMCI, TR-069 |
| Təhlükəsizlik | AES Encryption, Packet Filter based on VLAN |
| Advanced Features | Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection Dying Gasp Terminal Silent mechanism |
| VLAN | 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| IGMP | IGMP v1/v2/v3 |
| DİGƏRİ | |
|---|---|
| Paket məzmunu | XPON Terminal XZ000-G6v Güc adapteri Sürətli Quraşdırma Bələdçisi |
| Ətraf mühit | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) İş rütubəti: 10%–90% kondensasiya olunmur Saxlama Rütubəti: 5%–90% kondensasiyasız |
| Certifications | CE, RoHS |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
