Description

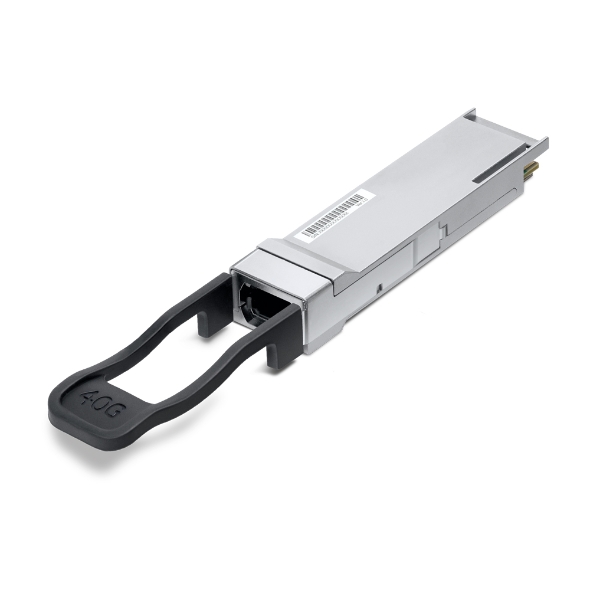

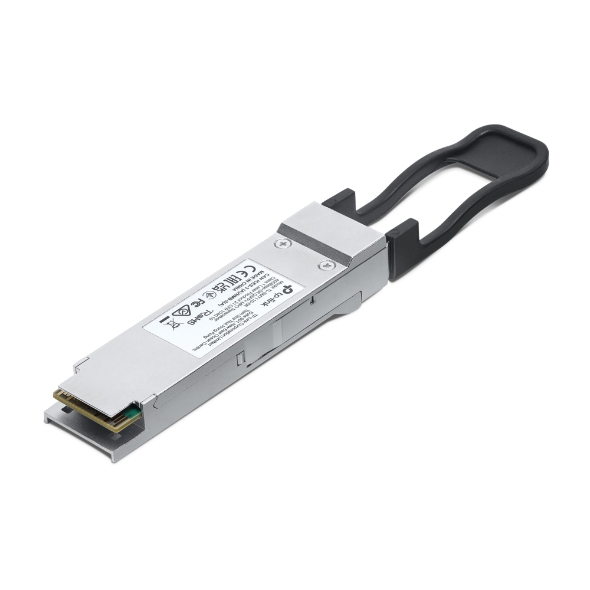

40GBase-SR QSFP+ MPO Transceiver
TL-SM7110-SR
- Enables ultra-fast fiber connections up to 41.25 Gbps over OM3 fiber within 150 m*
- Supports 40GBASE-SR4/QDR application and compatible with QSFP+ Electrical MSA SFF-8436.
- Supports hot swapping feature for quick and easy installation and application.
- Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring.
Additional information
| Brand | Tp-Link |
|---|---|
| Model | TL-SM7110-SR |
| QSFP+ Module | |
|---|---|
| Wave Length | 830 nm – 870 nm (Typ. 850 nm) |
| Connector | Device: QSFP+ Fiber: MPO |
| Fiber Type | Multi-mode (50/125 MMF) |
| Data Rate | 40GBASE-SR4 at 10.3124 Gbps per Lane |
| Extinction Ratio | > 3 dB |
| Receiver Sensitivity | ≤ -10.2 dBm |
| Rx Optical Power Tolerance | > 2.5 dBm |
| Transmission Distance | Max. 150m (OM3) |
| Hot Swap | Yes |
| Nominal Voltage | 3.3 V (< ± 5％) |
| Diagnostic Funotion | Monitors parameters such as voltage, transceiver power, and temperature |
| Electrical Level | Data Interface: CML Control Interface: LVTTL |
| Package | QSFP+ Transceiver TL-SM7110-SR Quick Installation Guide |
| Tx Optical Power | 6～2.4dbm |
| Saturation Optical Power | ＞2.5 dBm |
