Mercusys Halo H30G
AC1300 Whole Home Mesh Wi-Fi System – 867 Mbps at 5 GHz + 400 Mbps at 2.4 GHz
2× Gigabit Ports per Unit
Connects up to 100 Devices
Coverage up to 1,800 ft² (160 m²)
- Description
- Additional information
- Specification
Description
Mercusys Halo H30G
- One Unified Network – With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.
- Seamless Roaming – Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.

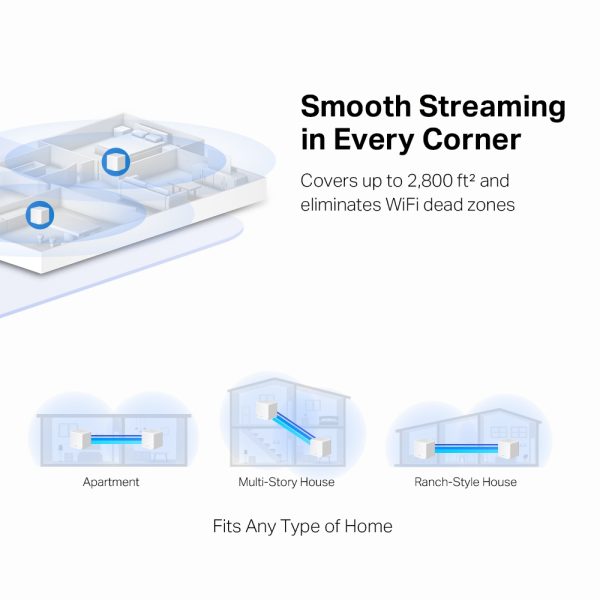

- Whole Home Coverage – Blanket up to 2,800 ft² (260 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.
- 1.3 Gbps Dual Band WiFi – Halo H30G provides fast and stable connections up to 100 devices with speeds of up to 1,300 Mbps and works with major internet service providers (ISPs) and modems.
- Easy App Control – Use the MERCUSYS App to quickly set up and manage your WiFi.

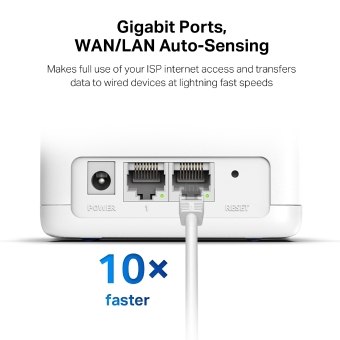

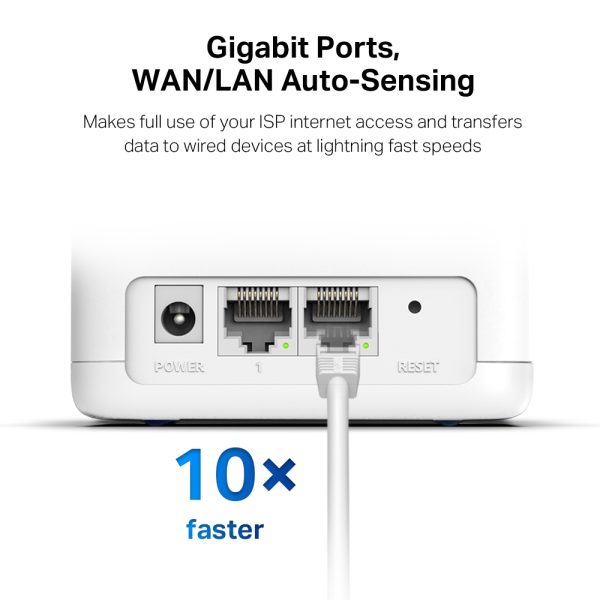

- Full Gigabit Ports – 2× Gigabit ports per Halo unit for lightning-fast wired connections
*Please note that the Halo H series and S series cannot work together.
View more in Official Website
Additional information
| Brand | Mercusys |
|---|---|
| Model | H30G |
- Wireless
- Wireless Standards
- IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
- WiFi Speeds
- 867 Mbps on 5 GHz, 400 Mbps on 2.4 GHz
- Reception Sensitivity
- 2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm
5GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm - Transmission Power
- 2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP) - Wireless Security
- WPA-PSK/WPA2-PSK
- Mesh protocol
- 802.11k/v/r
- Software
- Operation Modes
- Router, Access Point
- Quality of Service
- WMM
- WAN Type
- Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management
- Local Management, Remote Management, Multi-Managers
- DHCP
- Server, Client
- Firewall Security
- SPI Firewall
- Protocols
- Supports IPv4 and IPv6
- Guest Network
- 2.4 GHz Guest Network x 1,
5 GHz Guest Network x 1
- Hardware
- Dimensions
- 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm)

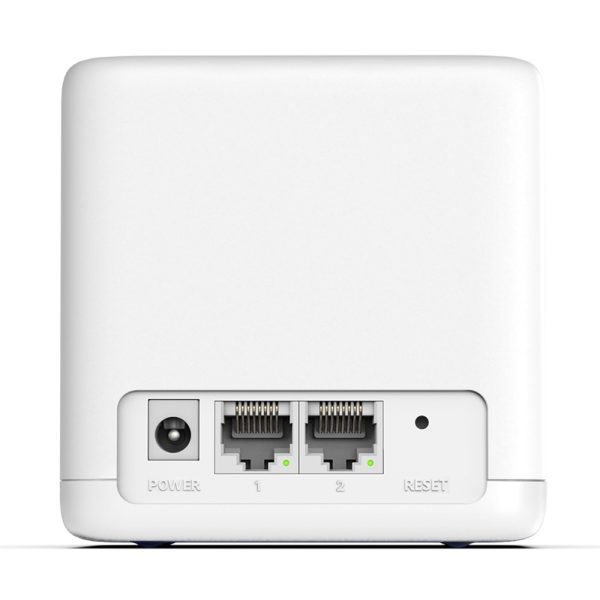

- Interfaces
- 2× Gigabit Ports per Halo Unit
(WAN/LAN auto-sensing) - Button
- Reset button
- Others
- Package Contents

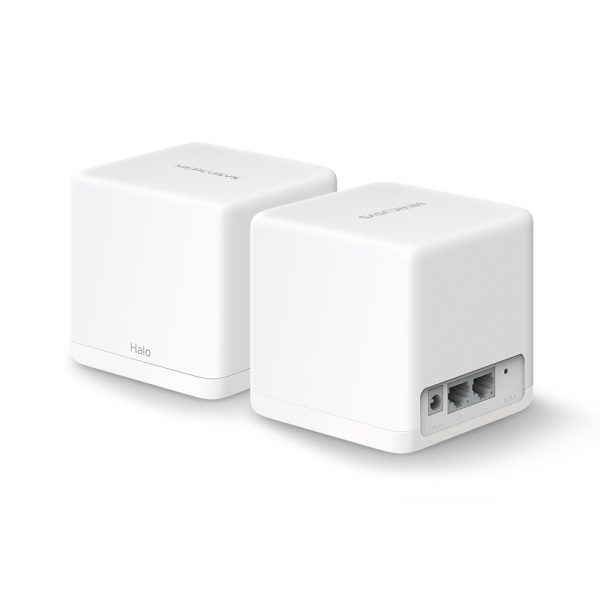

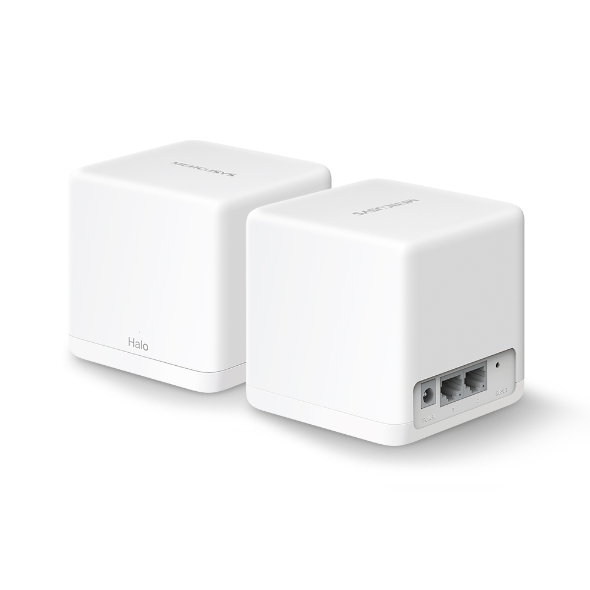

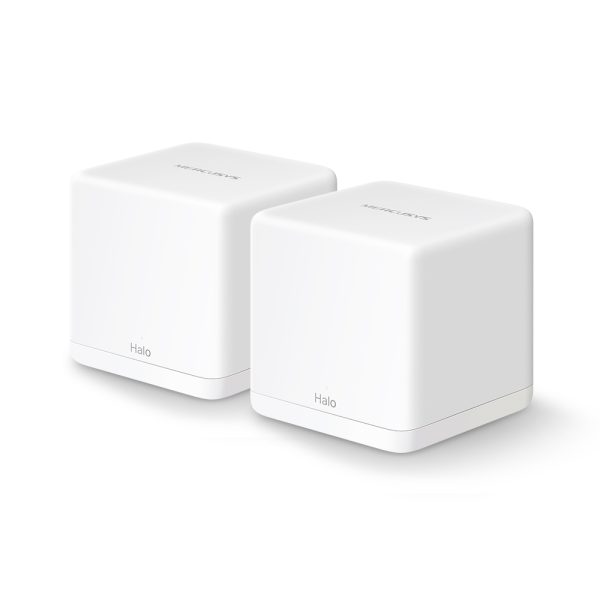

- 2× Halo H30G Units
1× RJ45 Ethernet Cable
2× Power Adapters
1× Quick Installation Guide - Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
