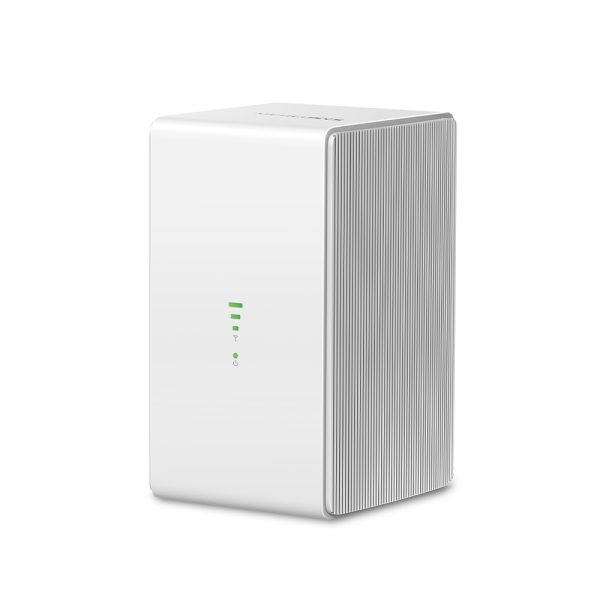

Mercusys MB110-4G
300 Mbps Wireless N 4G LTE Router – 4G LTE
300 Mbps at 2.4 GHz
SIM Card Plug and Play
4G/3G Extern Antennas Ports
- Description
- Additional information
- Specification
Description
Mercusys MB110-4G

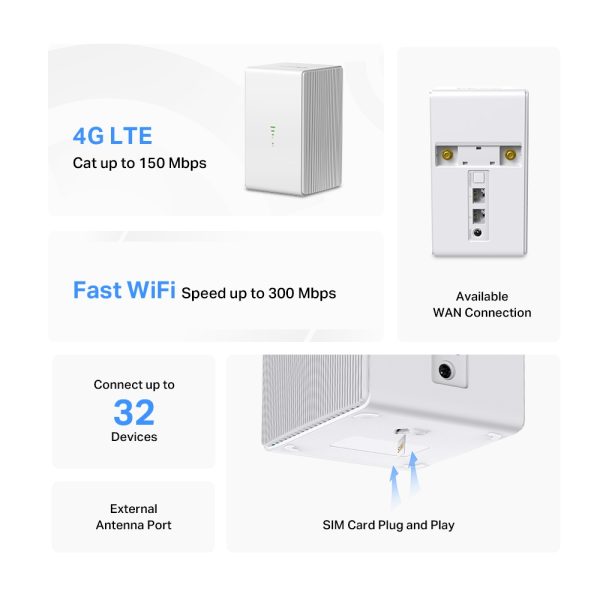

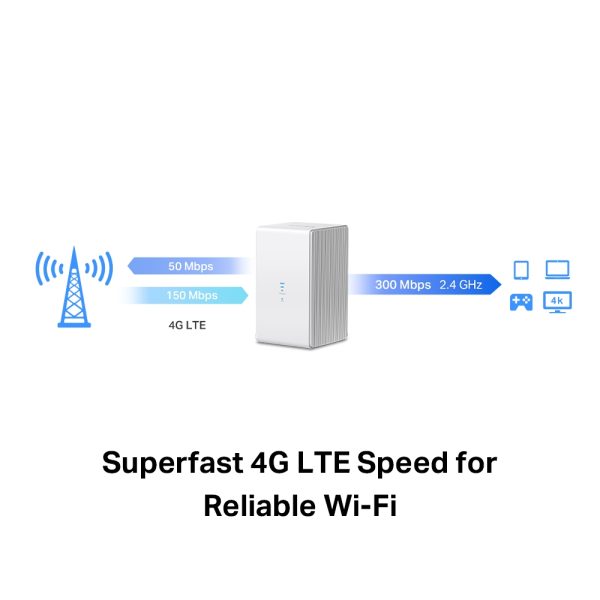

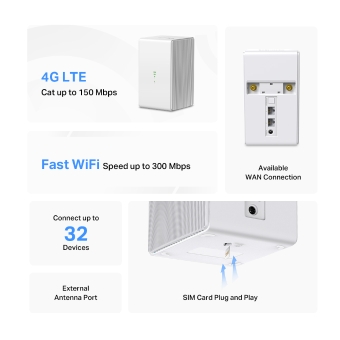

- 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

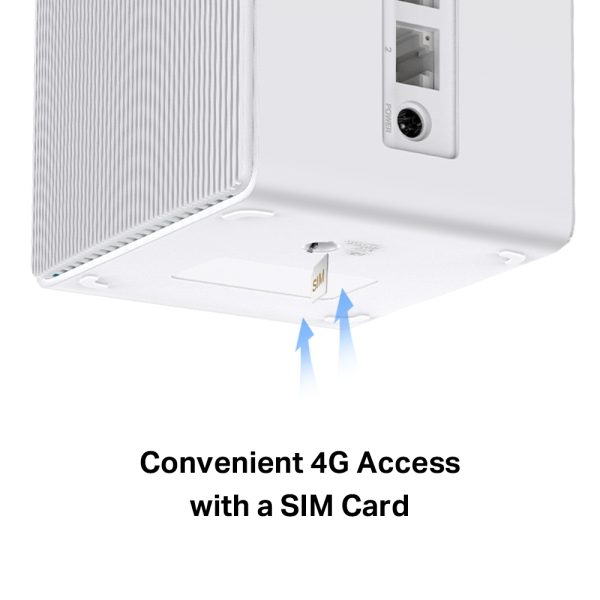

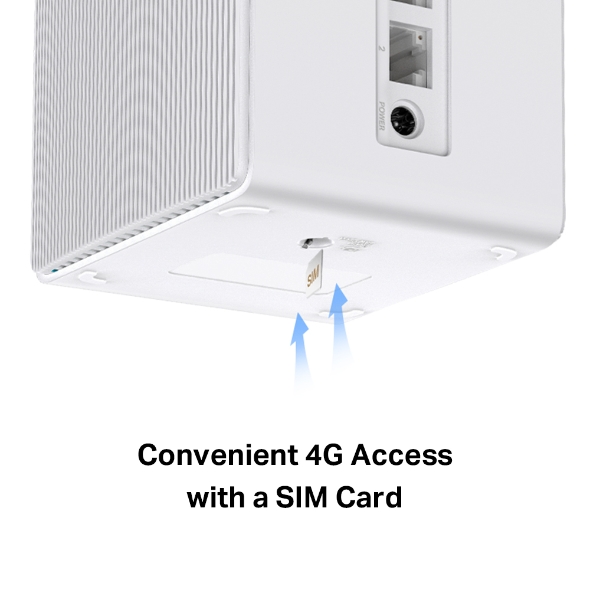

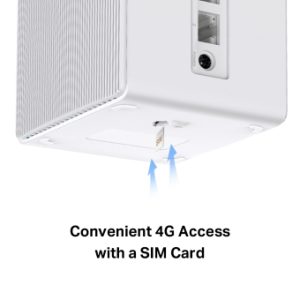

- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests
- 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network

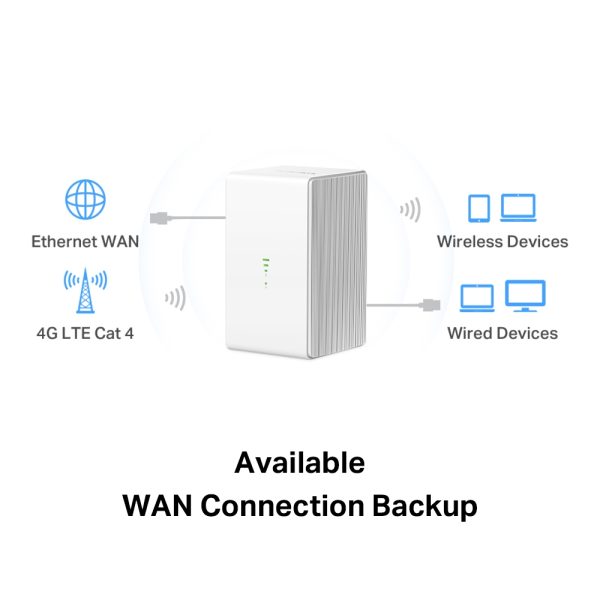

- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can’t get a 4G connection
View more in Official Website
Additional information
| Brand | Mercusys |
|---|---|
| Model | MB110-4G |
| Sim Card Support | Yes |
- Wireless
- Wireless Standards
- IEEE 802.11b/g/n
- Frequency
- 2.4 GHz
- WiFi Speeds
- 300 Mbps
- Reception Sensitivity
- 11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm - Transmission Power
- < 20 dBm (2.4 GHz)
- Wireless Security
- WPA-PSK / WPA2-PSK
- Wireless Functions
- Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
- Software
- DHCP
- Server
- Hardware
- Dimensions
- 90×92×150.5 mm

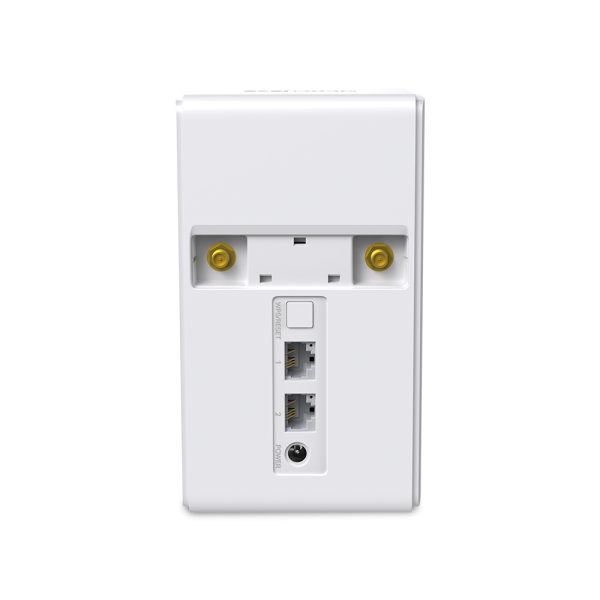

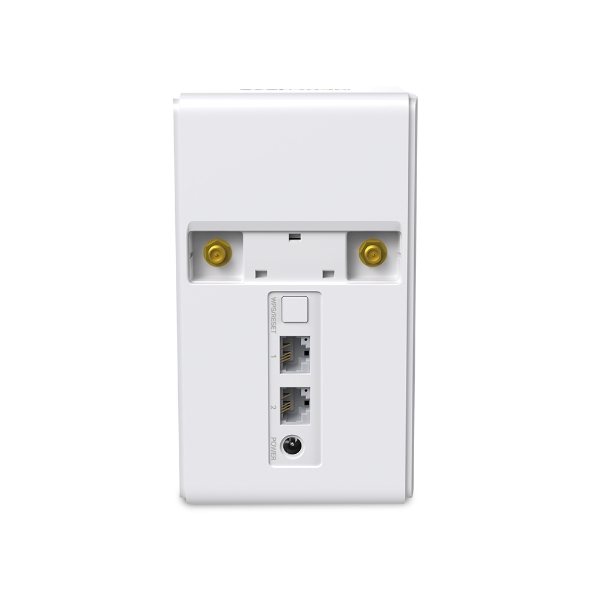

- Interfaces
- 1× 10/100Mbps LAN/WAN Port
1× 10/100Mbps LAN Port
2× 4G/3G External Antenna Ports
1× Nano SIM Card Slot
- Button
- WPS/Reset Button
- Ethernet Ports
- 1× 10/100 Mbps LAN/WAN Port +
1× 10/100 Mbps LAN
- Network Type
- EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
UN:
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)
TDD-LTE: B40 (2300 MHz)
HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)
- Others

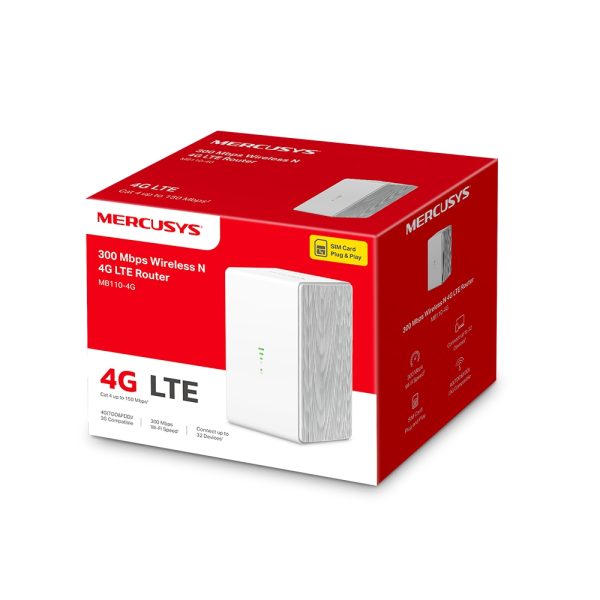

- Package Contents
- 300 Mbps Wireless N 4G LTE Router (MB110-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
- Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
