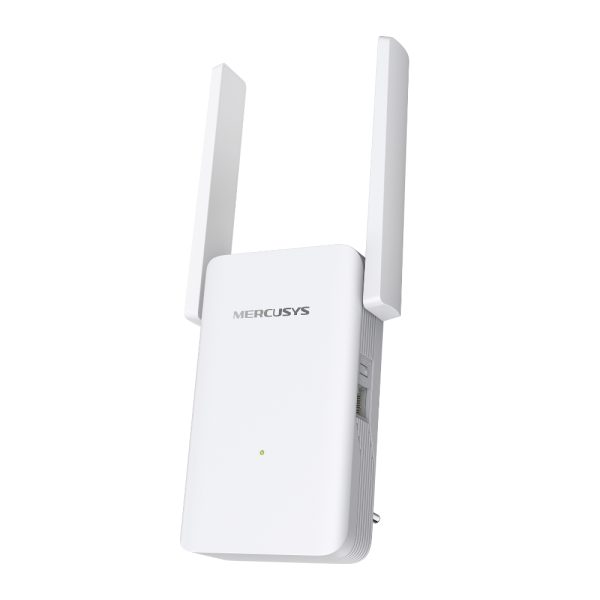

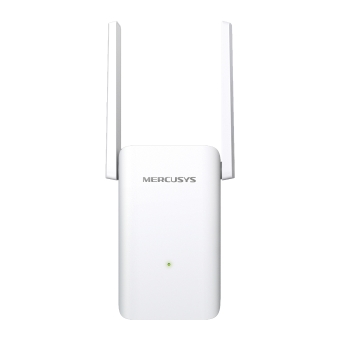

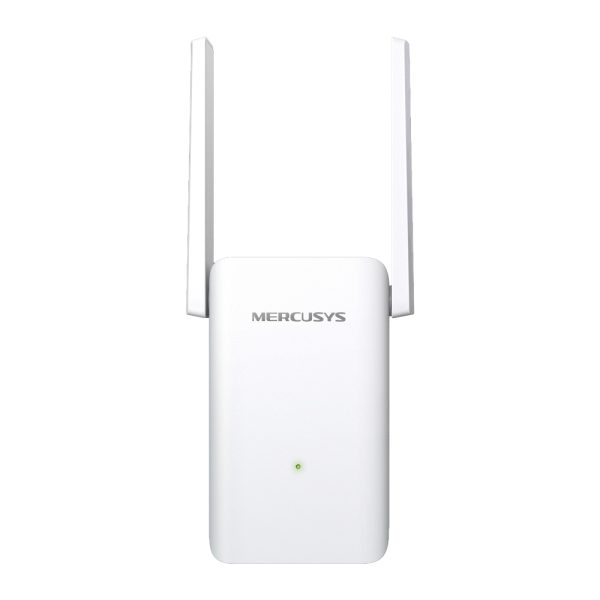

Mercusys ME70X
AX1800 Wi-Fi 6 Range Extender – 1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
1 × Gigabit Port
2× Fixed External Antennas
Works with Any Router
- Description
- Additional information
- Specification
Description
Mercusys ME70X
- Dual Band Speeds up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
- Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
- Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.

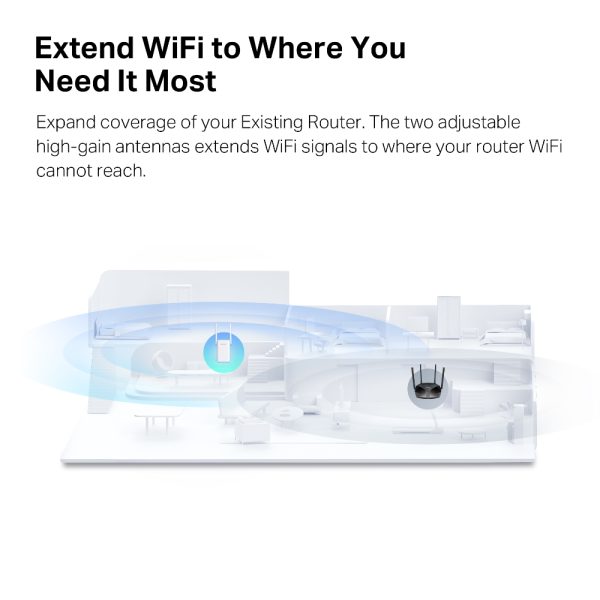

- Works with Any Routers – To Extend WiFi to Where You Need It Most. ‡
- Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.

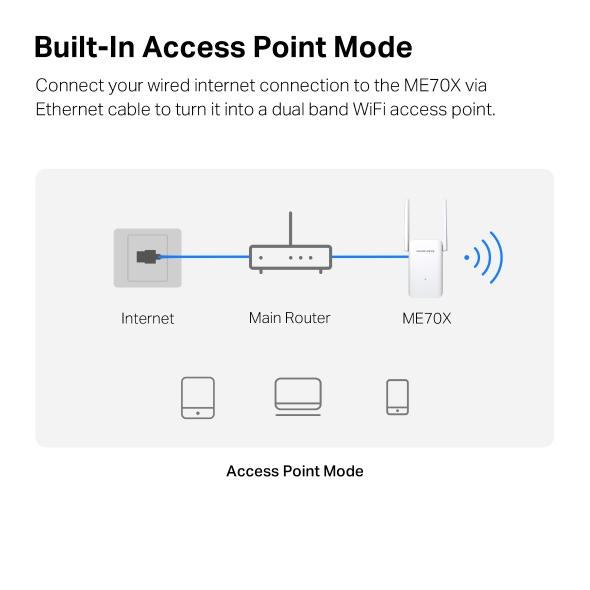

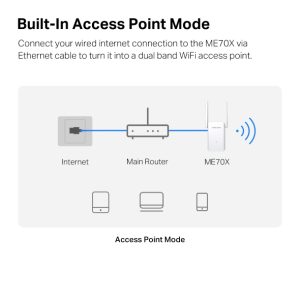

- Built-In Access Point Mode – Works as RE mode and AP mode.
- Manage Your Network with App – Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
View more in Official Website
Additional information
| Brand | Mercusys |
|---|---|
| Model | ME70X |
- Wireless
- Wireless Standards
- IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
- Frequency
- 2.4GHz and 5GHz
- WiFi Speeds
- 574 Mbps at 2.4GHz, 1201 Mbps at 5GHz
- Reception Sensitivity
- 5GHz:
11ax HE80 MCS0:-88 dBm ;
11ax HE80 MCS11:-58 dBm
11a 6Mbps:-94 dBm;
11a 54Mbps:-76 dBm
11ac VHT80 MCS0:-91dBm;
11ac VHT80 MCS9:-63dBm;2.4GHz:
11ax HE40 MCS0:-93 dBm ;
11ax HE40 MCS11:-63 dBm
11g 6Mbps:-95 dBm;
11g 54Mbps:-77 dBm
11n HT40 MCS9:-72dBm; - Wireless Security
- WEP, WPA, WPA2, WPA3-PSK
- Hardware
- Dimensions
- 138.6 × 100.3 × 68.4 mm
- Interfaces
- 1 Gigabit Ethernet Port
- Button
- WPS / Reset Button
- Antenna Type
- 2× External Antennas
- Power Consumption
- 13W
- Others
- Certifications
- RoHS
- Package Contents
- Wi-Fi Range Extender ME70X
Quick Installation Guide - Environment
- • Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
