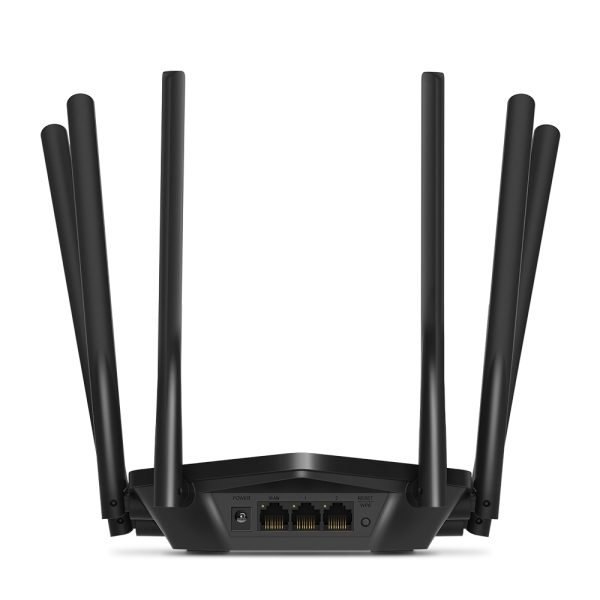

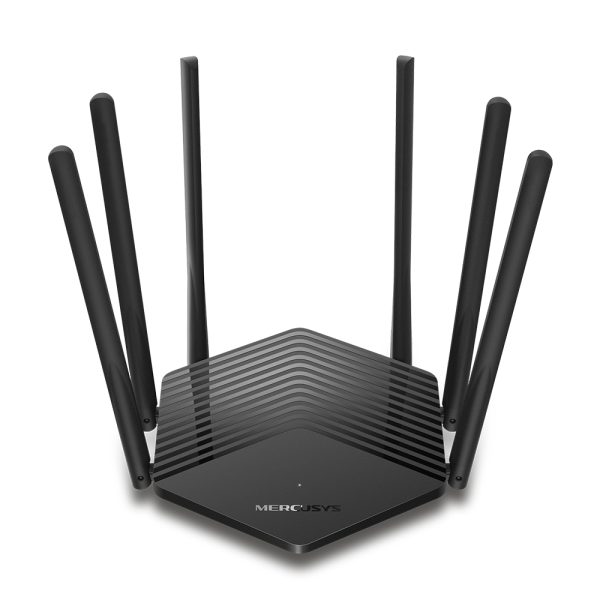

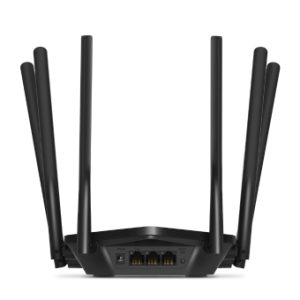

Mercusys MR50G
AC1900 Wireless Dual Band Gigabit Router – 600 Mbps at 2.4 GHz + 1300 Mbps at 5 GHz
2× Gigabit LAN Ports + 1× Gigabit WAN Port
6× Fixed External Antennas
Beamforming, MU-MIMO, Access Point Mode
- Description
- Additional information
- Specification
Description
Mercusys MR50G
- AC1900 Dual Band Speeds – Enjoy home entertainment without any lag, reaching speeds up to 1900 Mbps (1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band)
- Far-Reaching Coverage – 6× high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Higher Network Efficiency – MU-MIMO technology allows MR50G to communicate with multiple devices at the same time, increasing the overall network throughput
- Smart Connect– Intelligently chooses the best available band for each device
View more in Official Website
Additional information
| Brand | Mercusys |
|---|---|
| Model | MR50G |
- Wireless
- Wireless Standards
- IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n/ac 2.4 GHz
- Frequency
- 2.4 – 2.5GHz, 5.15 – 5.25GHz
- WiFi Speeds
- 600 Mbps at 2.4 GHz, 1300 Mbps at 5 GHz
- Reception Sensitivity
- 5GHz:
11a 6Mbps: -98dBm, 11a 54M: -78dBm
11ac VHT20_MCS0: -98dBm, 11ac VHT20_MCS8: -72dBm
11ac VHT40_MCS0: -92dBm, 11ac VHT40_MCS9: -68dBm
11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS9: -64dBm
2.4GHz:
11g 6Mbps: -97dBm, 11a 54M: -77dBm
11n VHT20_MCS0: -97dBm, 11n VHT20_MCS8: -72dBm
11n VHT40_MCS0: -92dBm, 11n VHT40_MCS9: -67dBm - Transmission Power
- CE:<20dBm (2.4GHz), <23dBm (5.15 – 5.25GHz)
FCC:<30dBm(2.4 GHz & 5GHz) - Wireless Security
- WPA-PSK / WPA2-PSK
- Wireless Functions
- Enable/Disable Wireless Radio, Wireless Statistics
- Software
- WAN Type
- Dynamic IP/Static IP/PPPoE/PPTP/L2TP
- Management
- Access Control
Local Management
Remote Management - DHCP
- Server
- Port Forwarding
- Virtual Server, UPnP, DMZ
- Firewall Security
- IP and MAC Address Binding
- Protocols
- IPv4, IPv6
- Guest Network
- 2.4 GHz Guest Network, 5 GHz Guest Network
- Hardware
- Dimensions
- 175.6 x 157.2 x 45 mm
- Interfaces
- 1× Gigabit WAN Port
2× Gigabit LAN Ports - Button
- WPS/Reset Button
- External Power Supply
- 12V/1A
- Antenna Type
- 6 Fixed Omni-Directional Antennas
- Others
- Package Contents
- • AC1900 Wireless Dual Band Gigabit Router
(MR50G)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
