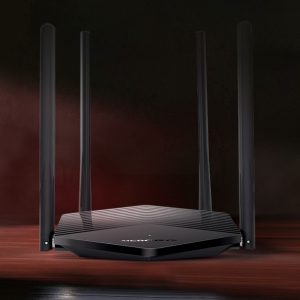

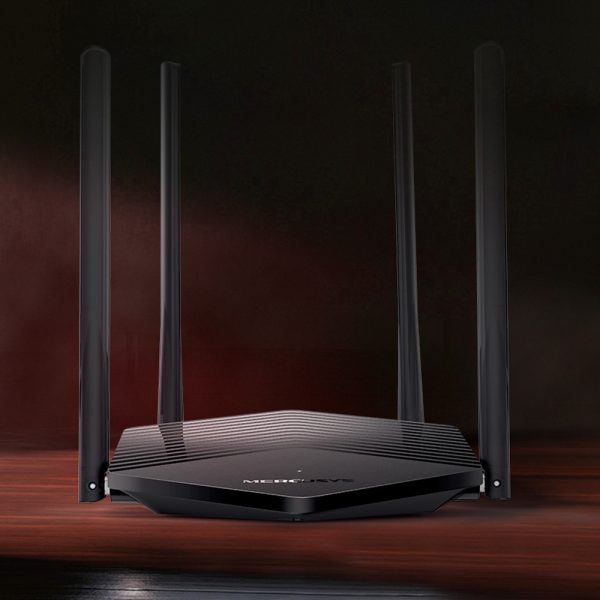

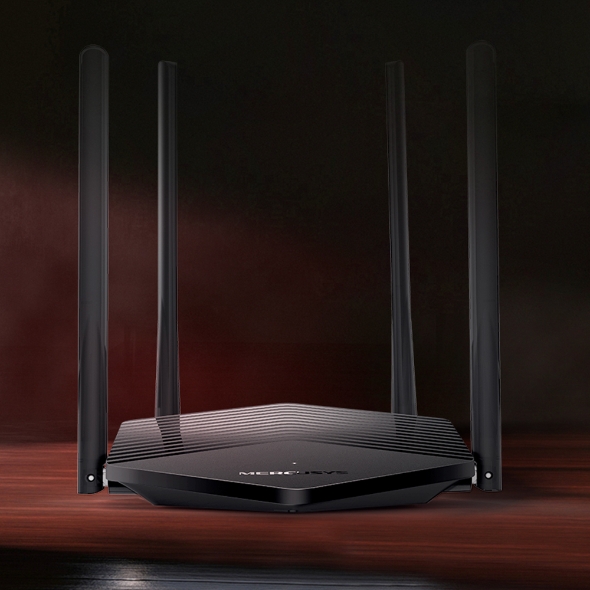

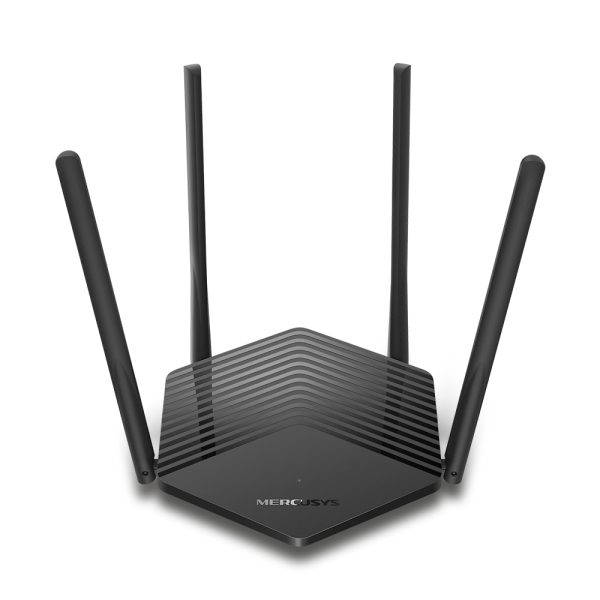

Mercusys MR60X
AX1500 WiFi 6 Router – 300 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
1× Gigabit WAN Port + 3× Gigabit LAN Ports
4× Fixed External Antennas
WPA3, 1024-QAM, OFDMA, TWT, BSS Color
- Description
- Additional information
- Specification
Description
Mercusys MR60X
- Upgrade Your Network with Wi-Fi 6 – MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.
- Faster 1.5 Gbps Speeds – Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Overall Security Protection – The latest WPA3 provides improved WiFi security
- Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect– Intelligently chooses the best available band for each device
View more in Official Website
Additional information
| Brand | Mercusys |
|---|---|
| Model | MR60X |
- Wireless
- Wireless Standards
-
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
- WiFi Speeds
- 1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
- Reception Sensitivity
- 11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-78dBm
11a 6Mbps:-94dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS8:-70dBm
11ac VHT80 MCS8:-65dBm - Wireless Security
- WPA / WPA2-Personal
WPA2 / WPA3-Personal - Wireless Functions
- Enable/Disable Wireless Radio, WMM
- Software
- WAN Type
- Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management
- Access Control
Local Management
Remote Management - DHCP
- Server, DHCP Client List
- NAT Forwarding
- Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall Security
-
SPI Firewall, IP and MAC Address Binding
- Guest Network
- 2.4 GHz Guest Network, 5 GHz Guest Network
- Hardware
- Dimensions
- 6.9 × 6.2 × 1.8 in (175.6 × 157.2 × 45 mm)

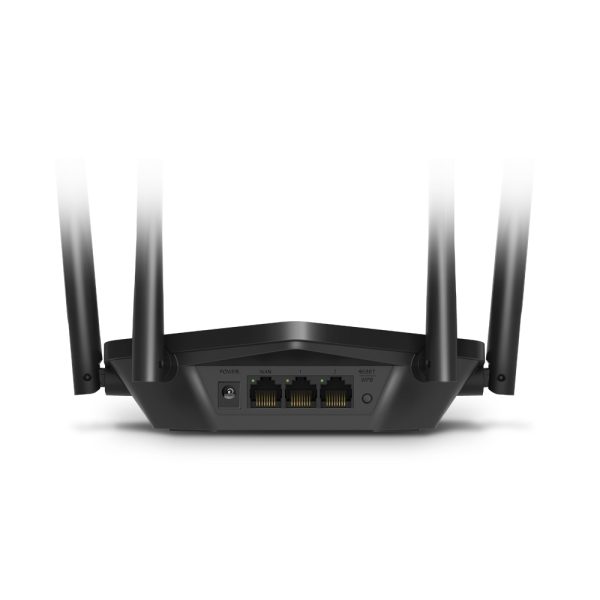

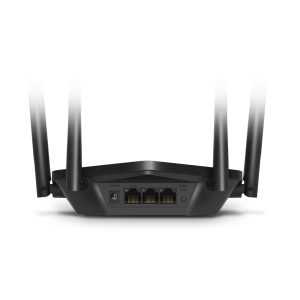

- Interfaces
- 1× Gigabit WAN Port + 2× Gigabit LAN Ports
- Button
- Reset/WPS Button

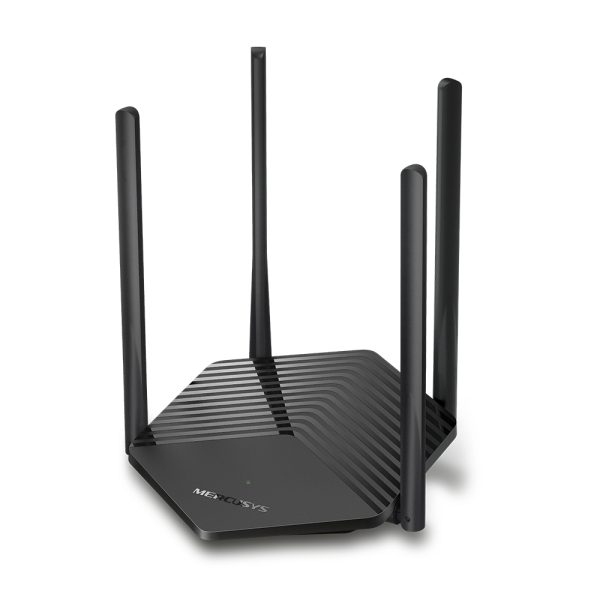

- Antenna Type
-
4× 5 dBi Fixed Omni-Directional Antennas
- Others
- Package Contents
- • AX1500 Wi-Fi 6 Router MR60X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable - Environment
- • Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
