Mercusys MS110P
60,00 ₼

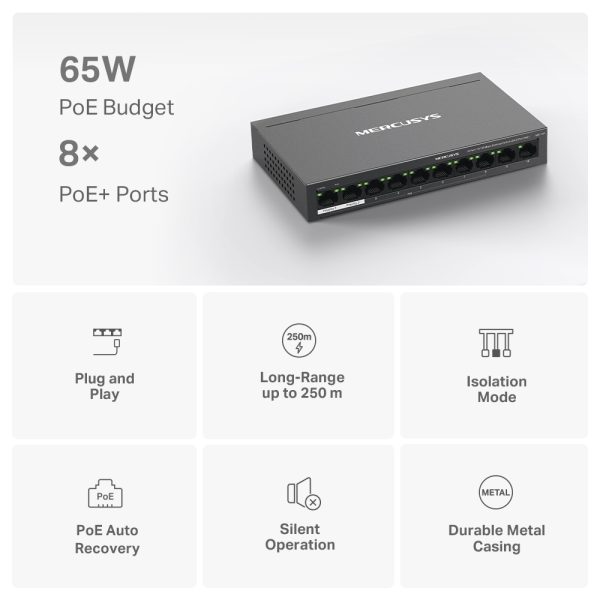

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ – 10× 10/100 Mbps Ports
65W PoE Budget
8× PoE+ Ports
PoE Auto Recovery
Long-Range up to 250 m
Durable Metal Casing
- Description
- Additional information
- Specification
Description
Mercusys MS110P

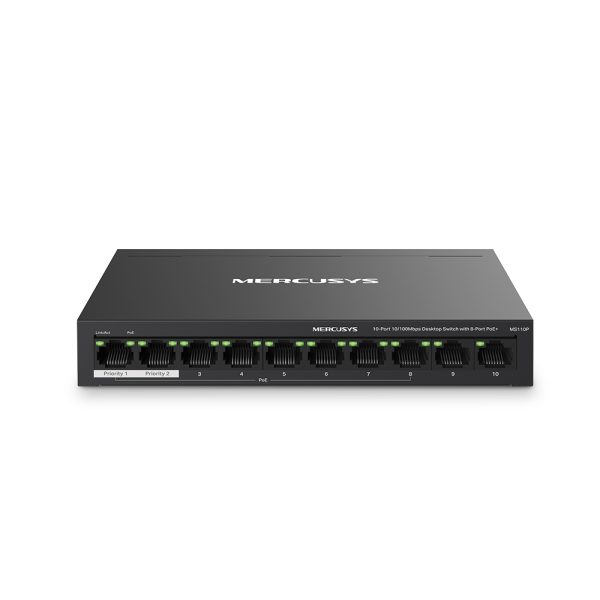

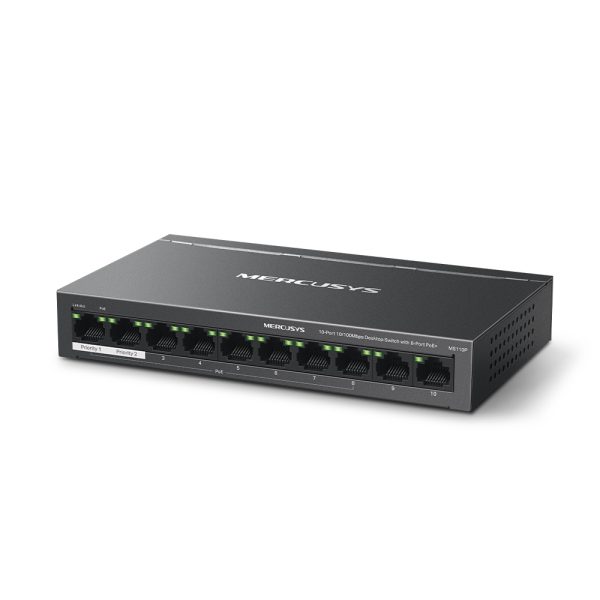

- 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

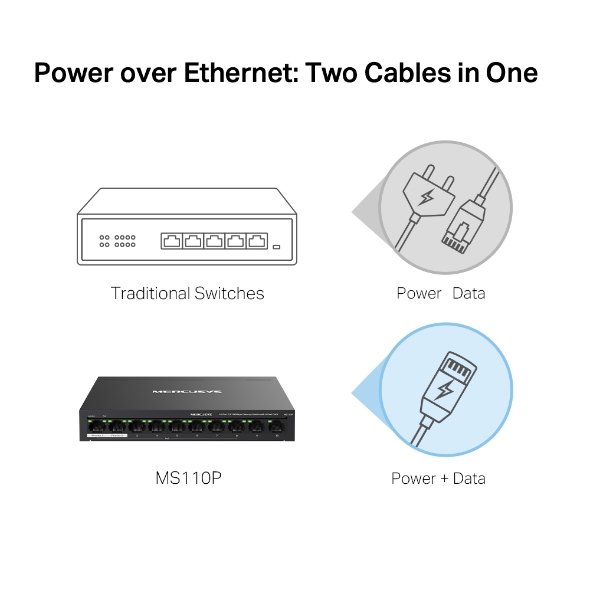

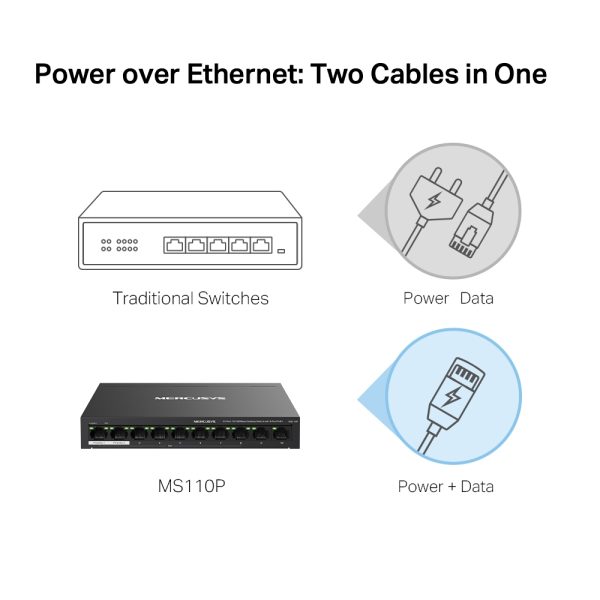

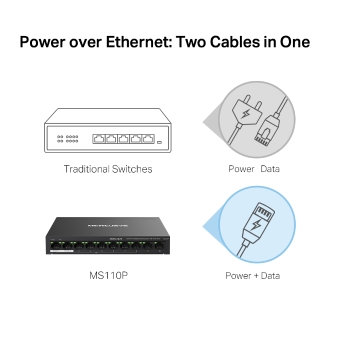

- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

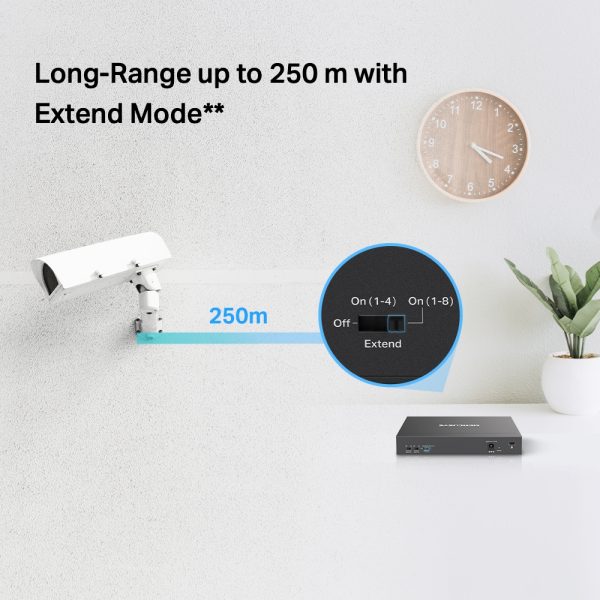

- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

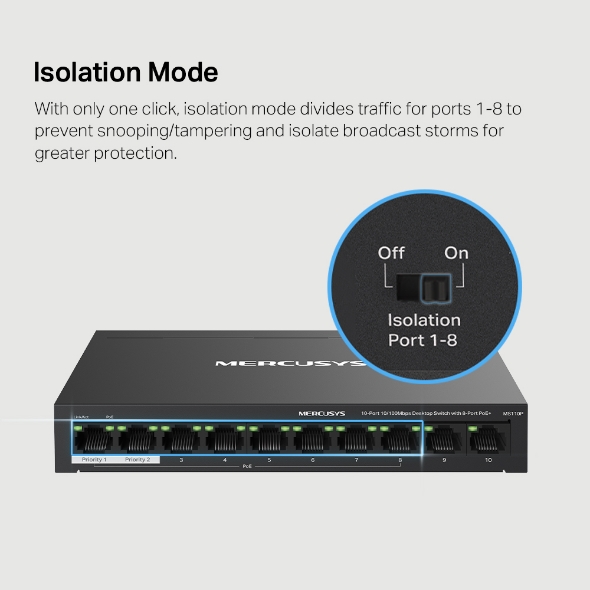

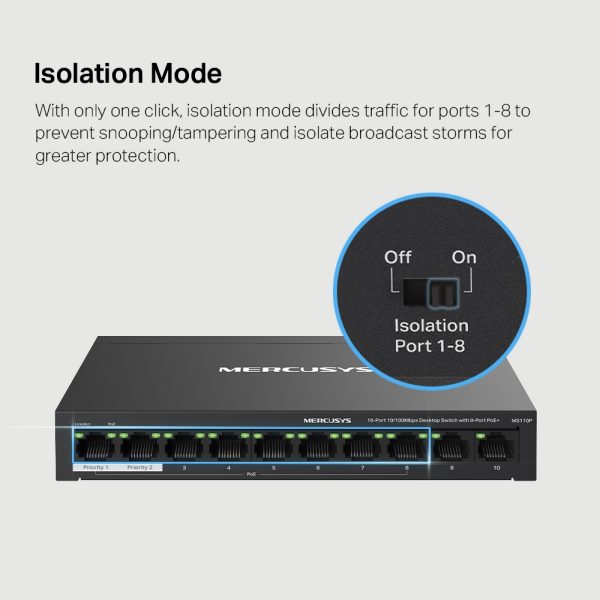

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

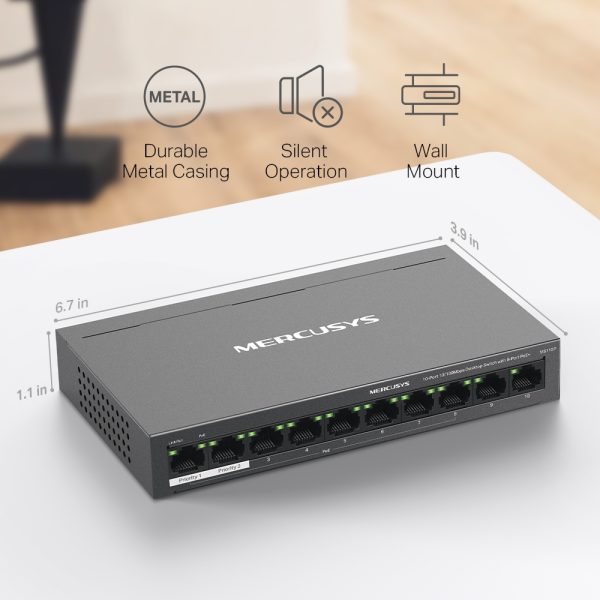

- Durable Metal Casing: Allows for efficient heat dissipation and long network life

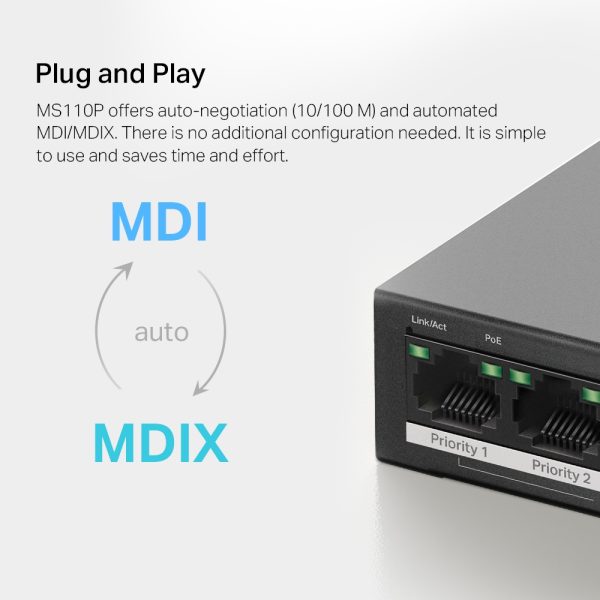

- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
View more in Official Website
Additional information
| Brand | Mercusys |
|---|---|
| Model | mS110P |
- Hardware
- PoE Ports
- RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W - Dimensions
- 171*98*27 mm
- Interfaces
- 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply

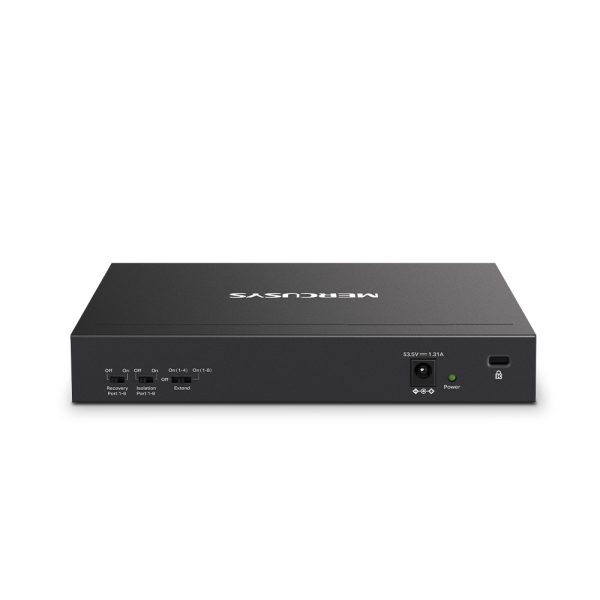

- External Power Adapter (Output: 53.5V/1.31A)
- Standards and Protocols
- IEEE 802.3x Flow Control
- Data Rates
- 10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex - Jumbo Frame
- 2 KB
- Mac Address Table
- 2K
- Max Power Consumption
- 10.064 BTH/h （no PD connected)
263.568 BTH/h（with 65W PD connected）
- Others
- Package Contents
- • 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide - Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
