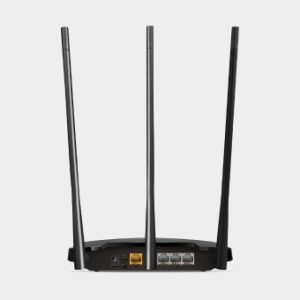

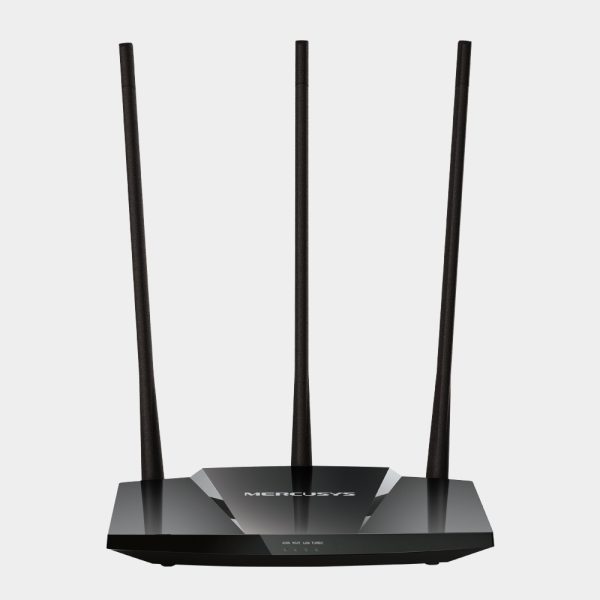

Mercusys MW330HP
300Mbps High Power Wireless N Router – 300 Mbps at 2.4 GHz

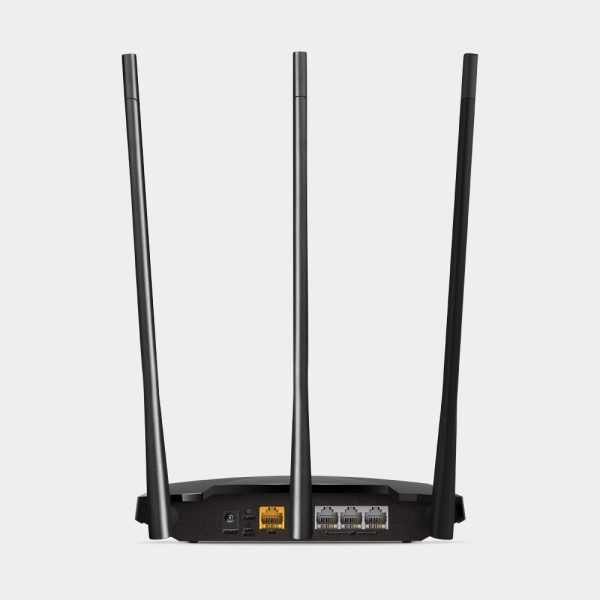

3× 10/100 Mbps LAN Ports + 1× 10/100 Mbps WAN Port
3× Fixed 7 dBi High Gain External Antennas,
IPTV, IPv6, Parental Controls
- Description
- Additional information
- Specification
Description
Mercusys MW330HP
- 300Mbps wireless speed – ideal for fast video streaming, online gaming and file downloads
- Turbo button – instantly enhances the Wi-Fi signal and expands wireless coverage
- PA chip – provides up to 2x transmission power, strong enough to penetrate walls and other obstacles
- High gain 7dBi antennas – strongly boosts wireless range and coverage
- Easy installation – intuitive webpage guides you through the setup process in minutes
View more in Official Website
Additional information
| Brand | Mercusys |
|---|---|
| Model | MW300HP |
- Wireless
- Wireless Standards
- IEEE 802.11b/g/n
- Frequency
- 2.402-2.482GHz
- WiFi Speeds
- 11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic) - Reception Sensitivity
- 270M: -74dBm@10% PER
130M: -76dBm@10% PER
54M: -78dBm@10% PER
11M: -90dBm@10% PER
6 M: -94dBm@10% PER
1 M: -96dBm@10% PER - Transmission Power
- <20dBm (EIRP)
- Wireless Security
- WPA-PSK / WPA2-PSK
- Wireless Functions
- Enable/Disable Wireless Radio, WDS Bridging
- Software
- WAN Type
- Dynamic IP/Static IP/PPPoE/PPTP/L2TP
- Management
- Access Control
Local Management
Remote Management - DHCP
- Server
- Port Forwarding
- Virtual Server, UPnP, DMZ
- Firewall Security
- IP and MAC Address Binding
- Guest Network
- 2.4GHz Guest Network
- Hardware
- Dimensions
- 192mm×127mm×36mm
- Interfaces
- 3*10/100Mbps LAN Ports
1*10/100Mbps WAN Port - Button
- TURBO, WPS/RESET
- External Power Supply
- 9V/0.6A
- Antenna Type
- 3 * 7dBi
- Others
- Package Contents
- 300Mbps High Power Wireless N Router
( MW330HP )
Power Adapter
Quick Installation Guide
Ethernet Cable - Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
